dual column y leg

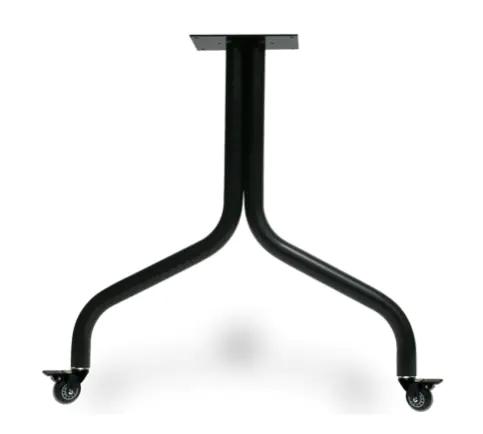

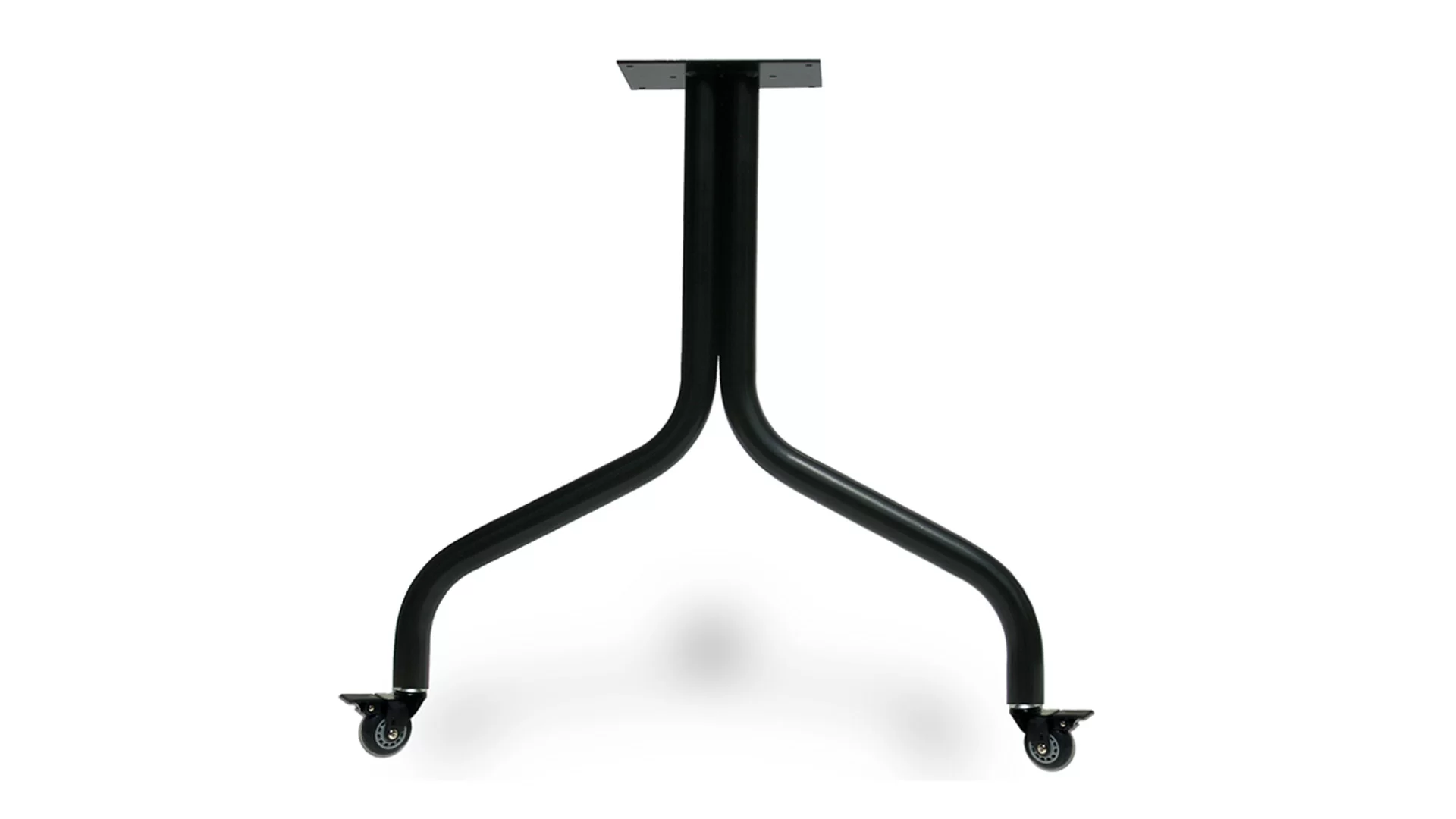

dual column y leg with skate casters

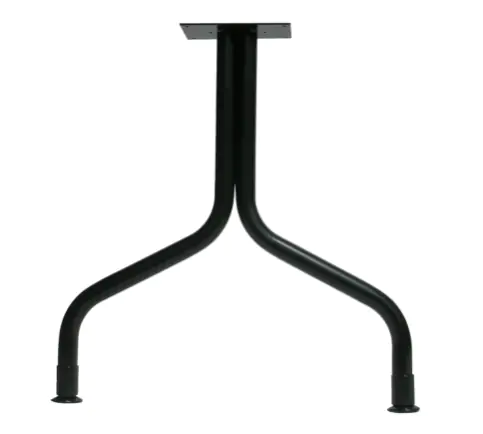

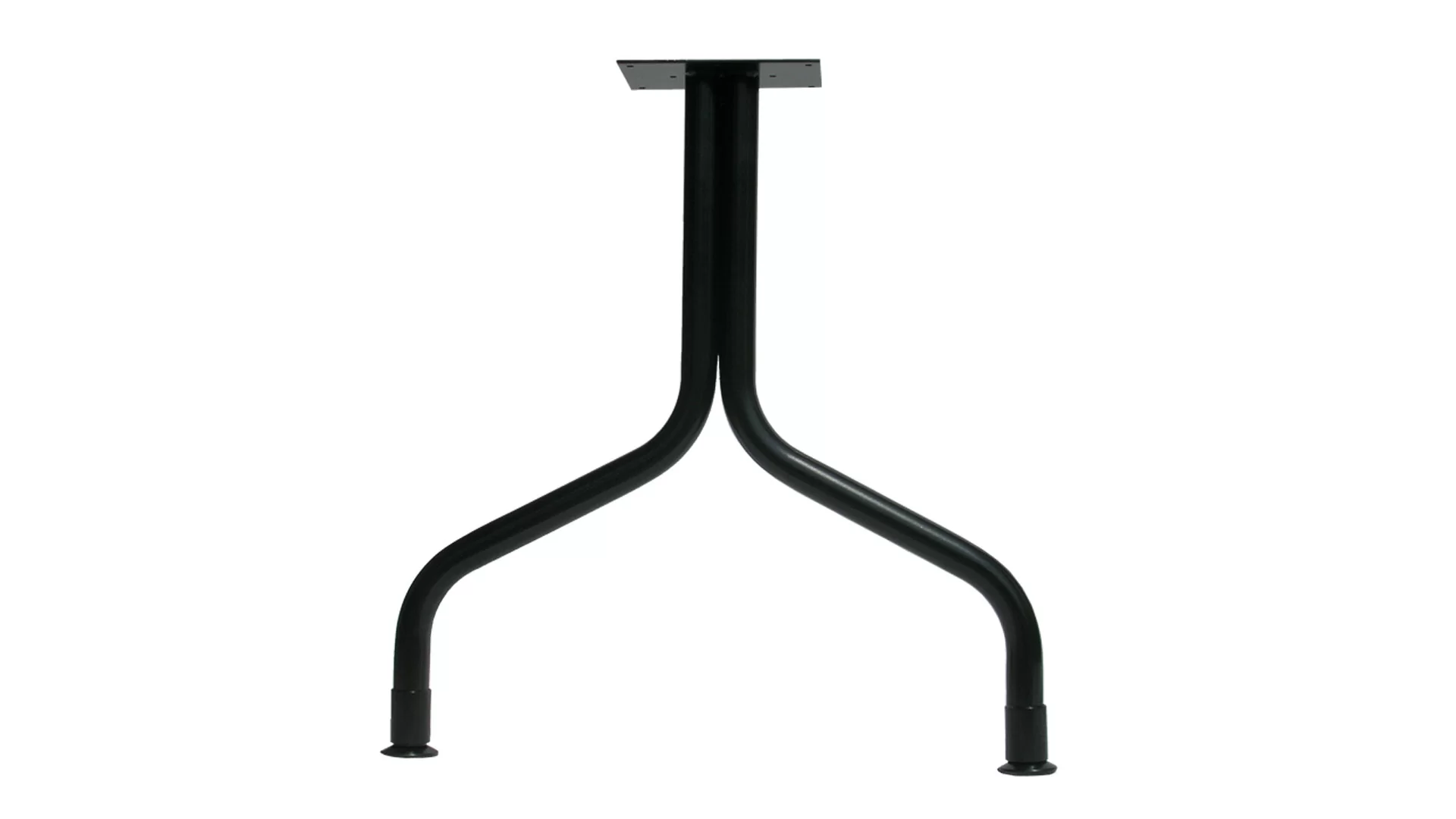

dual column y leg
Special Offer

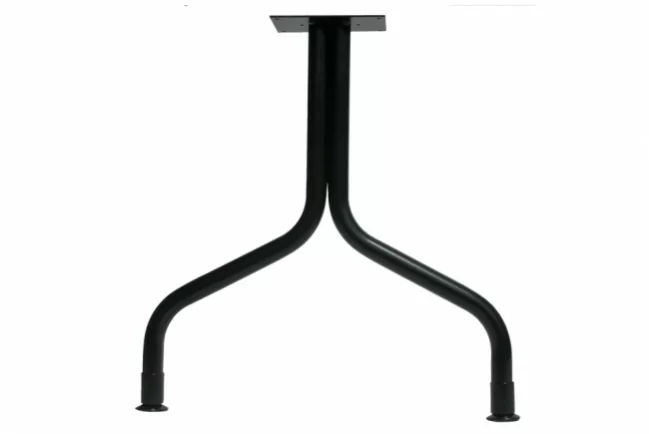

Dual Column Y-leg

Contemporary

Configure Bases

Price From:

$230 List

DESCRIPTION:

  • Welded construction
  • Column: 1.5" diameter
  • Unit Height: 27.75"
  • Welded Mounting Plate: 5" x 8" x 7/32"; require (4-8) #12-14 screws
  • Bell Glide: 2" 3/8 diameter nylon glide in 2.5" high steel extender
  • Finish: durable powder coat; black is stock color
  • 220 lbs. (100kg) vertical load rating per leg
  • Packaging: 2 legs per box (legs are priced individually)


OPTIONS:

  • Locking Caster: 3" skate wheel; 112 lbs. load capacity
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Column Diameter 1.5" dia.
Welded Mounting Plate 5" x 8" x 7/32"
Base Spread 23.5", 27.5"
Leveling Glides 1 3/8" diameter nylon glide
Finish powder coat; black is stock color
Packaging 2 legs per box (legs are priced individually)

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
27.5"1.5"5" x 8"30" - 36"
